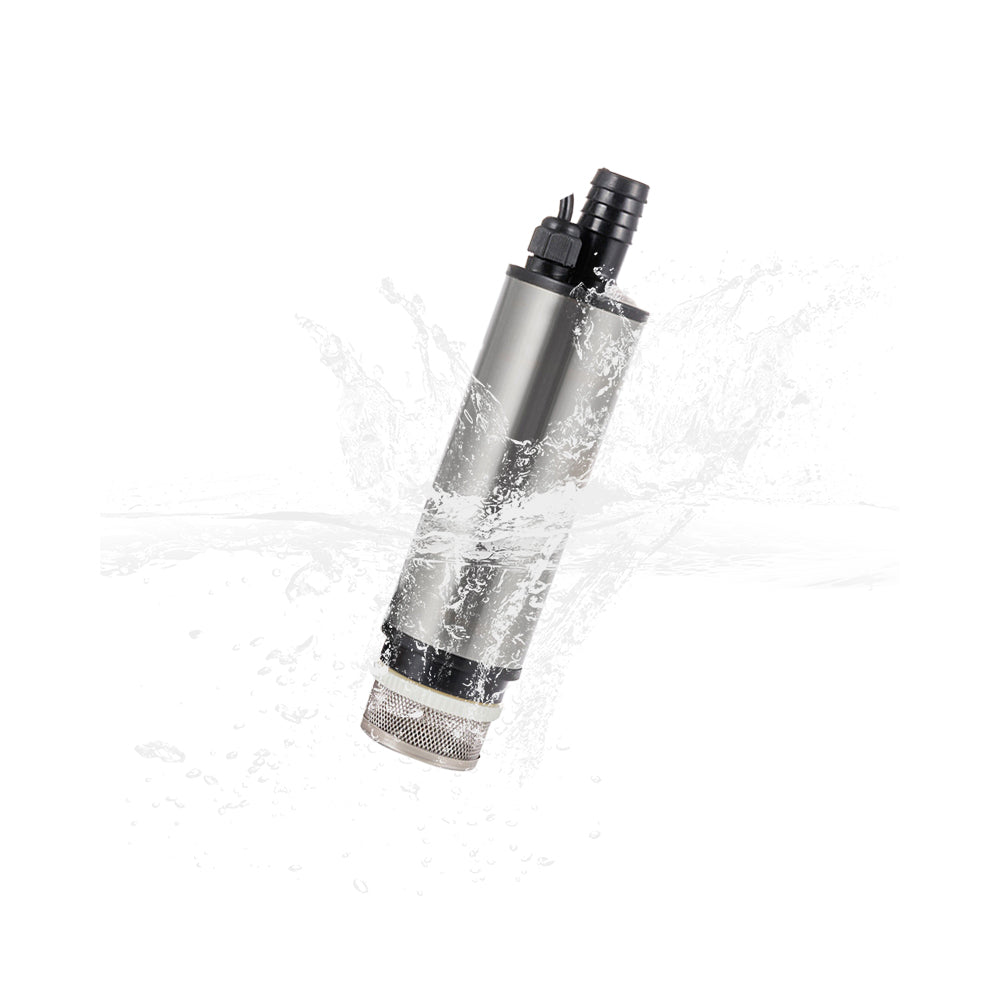

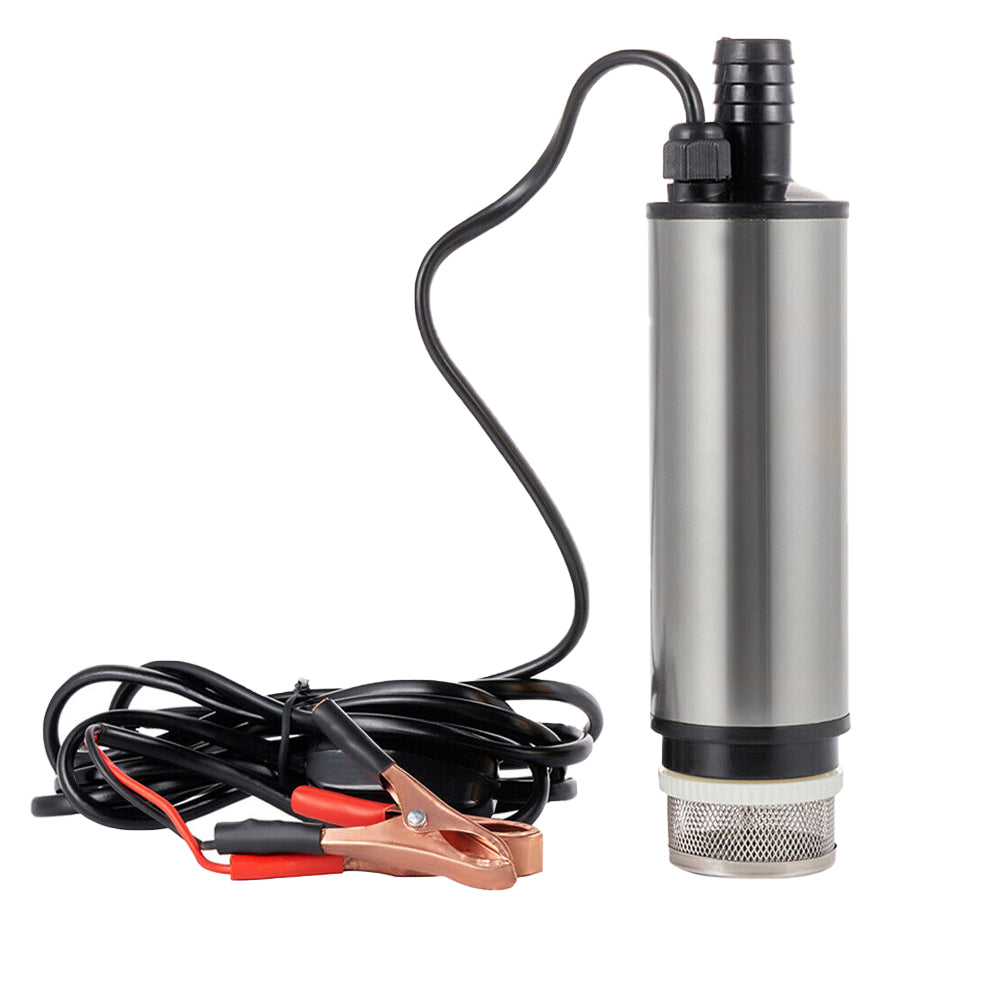

12V Stainless Steel Diesel Fuel Transfer Pump with Filter

Description: This stainless steel diesel fuel pump can securityly deliver diesel, fuel water or kerosene.

Features:
Using DC12V direct current motor, low noise, fast speed.
It has good sealing performance and adopts multiple seals to prevent leakage and prolong service life.
The stainless steel shell increases the thickness of the shell, makes the shell stronger, not easy to deform, and can effectively prevent the shell from rust and rot.

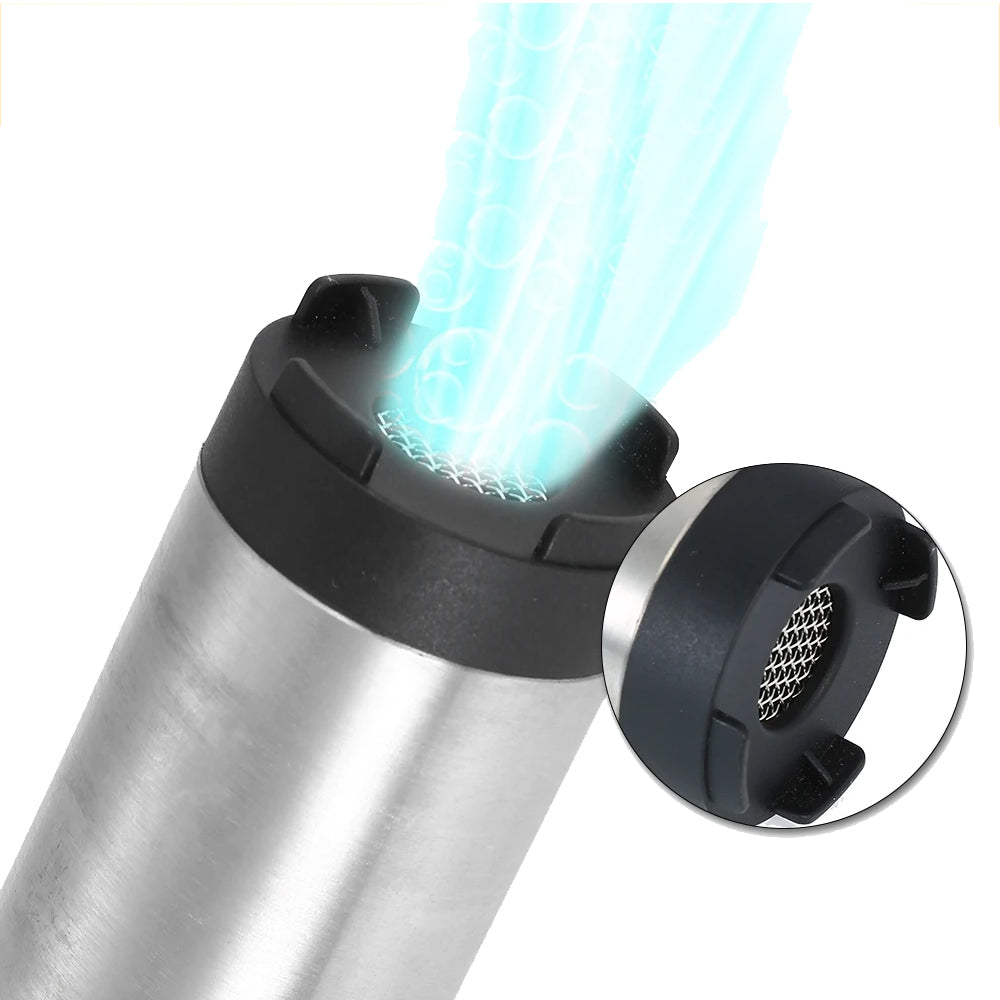

There is a stainless steel filter in the bottom filter of the oil well pump to make the diesel oil (or water) pumped out cleaner.

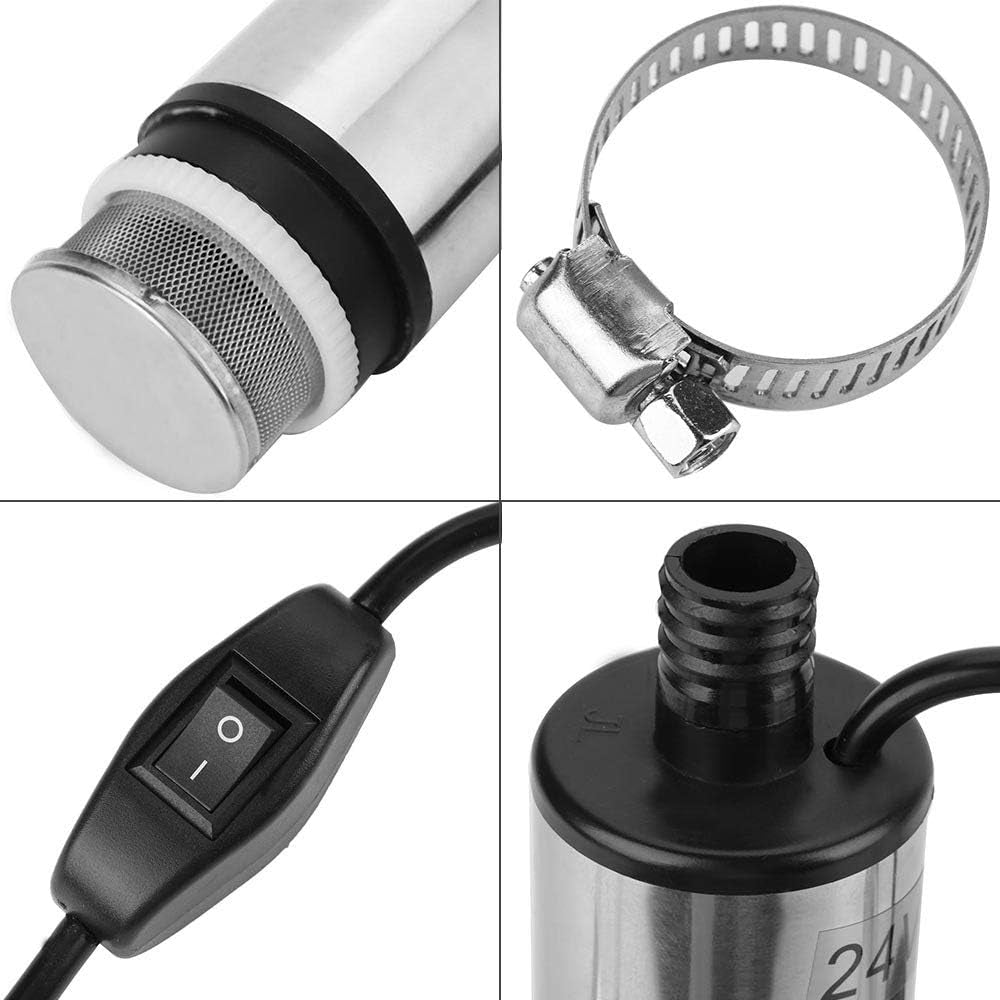

The bottom filter is equipped with a threaded interface, which is convenient for disassembly, maintenance, and replacement.
There is a midway switch on the power cord for easy operation.
The oil output is about 20L/min.
Suitable for harvesters, large agricultural machinery, construction machinery, big wheel towing and other field operation refueling inconvenient means of transportation and equipment and machinery that cannot reach the gas station refueling.
It is forbidden to pump gasoline, alcohol, acid and alkali and other flammable, explosive and corrosive liquids.

Specifications:
Material: Stainless Steel
Color: Silver
Voltage: DC 12 V
Rated Power: 80KW
Rated Flow: 15-20L/min
Rated Head: 4m
Maximum Entry Depth: 3-5m
Motor Speed: 5500 R/Min

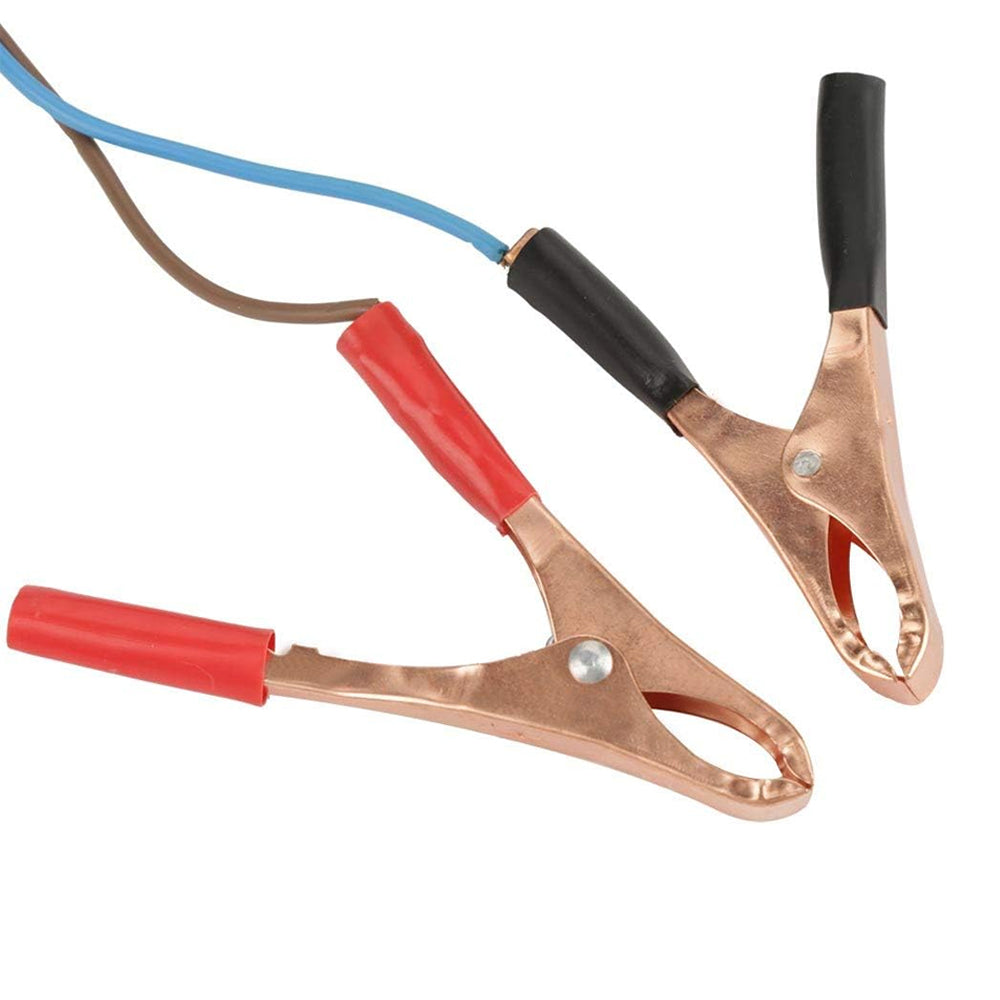

Oil Pump Power Connector: Alligator Clip
Product Size:
Diesel Fuel Pump(LxWxH): 21 x 5 x 5 cm
The Diameter of the pump: 51mm
Wire Length: 1.5m

Package Contents:
1 x Diesel Fuel Pump
1 x Pipe Clamp

Please note:
After use, the oil well pump should be taken out of the oil (or water) in time.

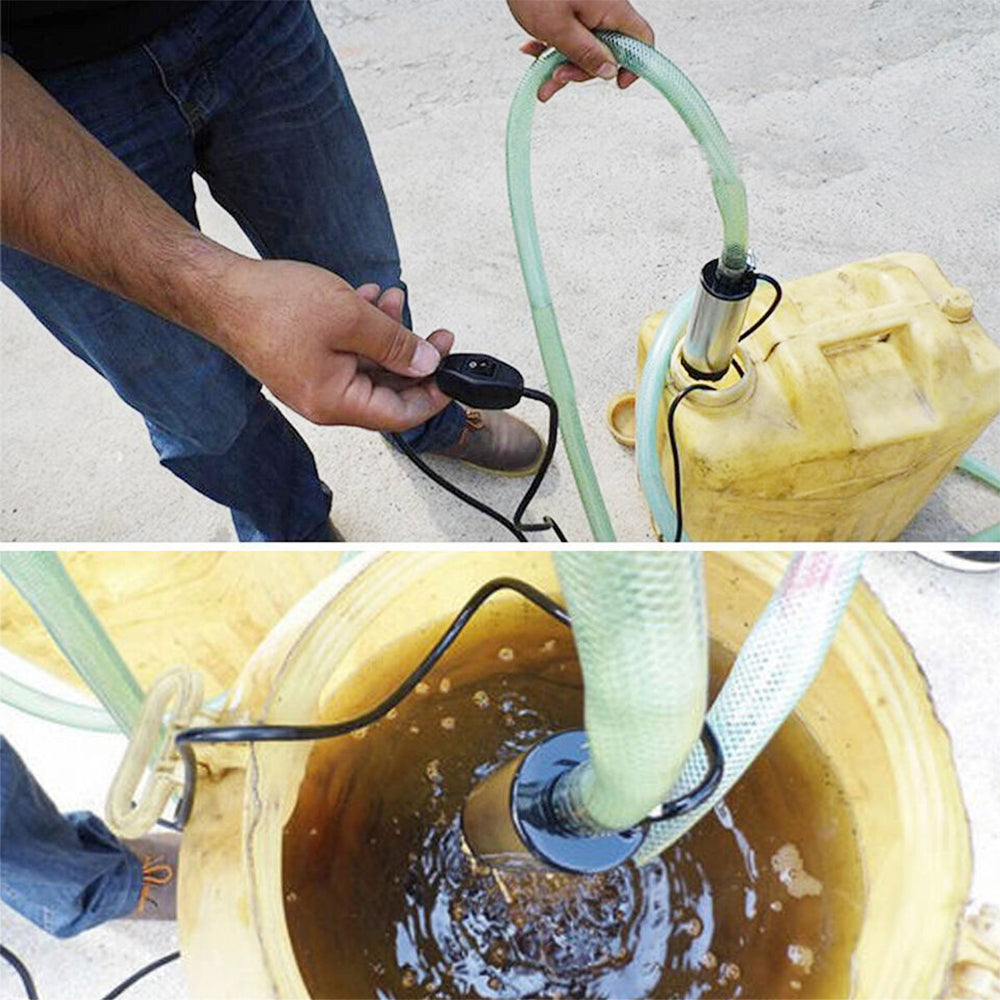

When pumping oil, you should first connect the self-prepared oil outlet hose, and then put the whole oil well into clean oil (or water).
The pump is designed for diesel and the bottom of the pump needs to be completely submerged in the liquid when it is used.
Due to manual measurement, there might be a tolerance in the product size.
Due to the lighting effects and shooting angles, the color of the item and that shown in the picture might have a nuance.
